API Diagrams

Hierarchy of Collection Framework

Collection in Java is a framework that provides an architecture to store and manipulate the group of objects.

Java Collections can achieve all the operations that you perform on a data such as searching, sorting, insertion, manipulation, and deletion.

Java Collection means a single unit of objects. Java Collection framework provides many interfaces (Set, List, Queue, Deque) and classes (ArrayList, Vector, LinkedList, PriorityQueue, HashSet, LinkedHashSet, TreeSet).

What is Collection in Java

A Collection represents a single unit of objects, i.e., a group.

What is a framework in Java

• It provides readymade architecture.
• It represents a set of classes and interfaces.
• It is optional.

What are we going to learn in Java Collections Framework

1. ArrayList class
2. LinkedList class
3. List interface
4. HashSet class
5. LinkedHashSet class
6. TreeSet class
7. PriorityQueue class
8. Map interface
9. HashMap class
10. LinkedHashMap class
11. TreeMap class
12. Hashtable class
13. Sorting
14. Comparable interface
15. Comparator interface
16. Properties class in Java

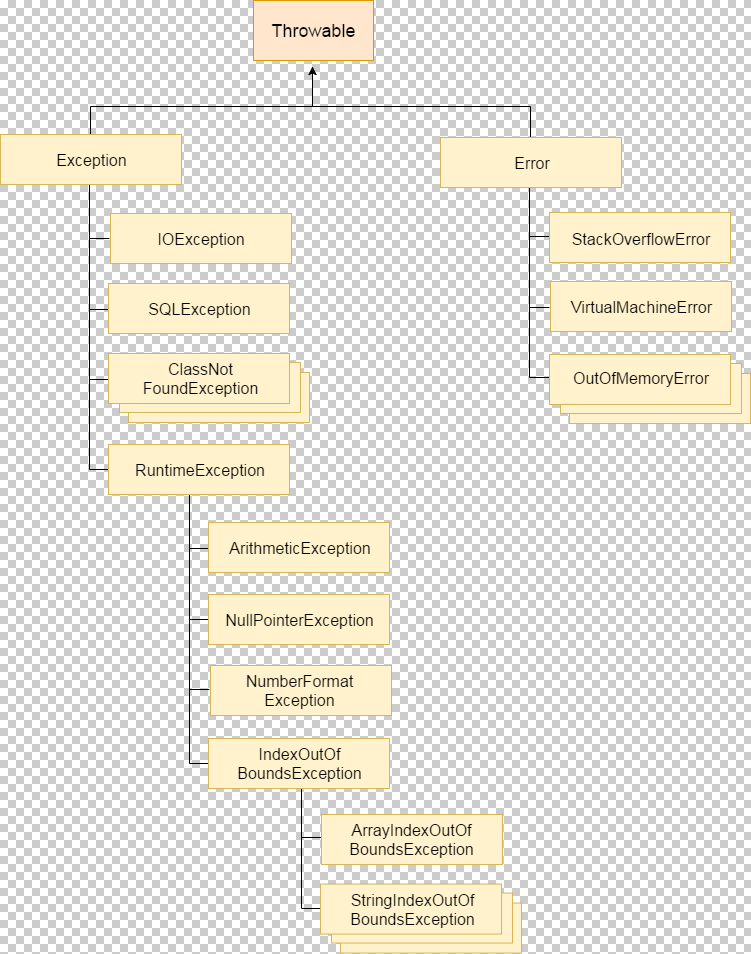

Hierarchy of Java Exception classes

Exception Handling in Java is one of the powerful mechanism to handle the runtime errors so that normal flow of the application can be maintained.

What is Exception in Java

Dictionary Meaning: Exception is an abnormal condition.

In Java, an exception is an event that disrupts the normal flow of the program. It is an object which is thrown at runtime.

What is Exception Handling

Exception Handling is a mechanism to handle runtime errors such as ClassNotFoundException, IOException, SQLException, RemoteException, etc.

Advantage of Exception Handling

The core advantage of exception handling is to maintain the normal flow of the application. An exception normally disrupts the normal flow of the application that is why we use exception handling. Let's take a scenario:

1. statement 1;
2. statement 2;
3. statement 3;
4. statement 4;
5. statement 5;//exception occurs
6. statement 6;
7. statement 7;
8. statement 8;
9. statement 9;
10. statement 10;

Suppose there are 10 statements in your program and there occurs an exception at statement 5, the rest of the code will not be executed i.e. statement 6 to 10 will not be executed. If we perform exception handling, the rest of the statement will be executed. That is why we use exception handling in Java.

Types of Java Exceptions

There are mainly two types of exceptions: checked and unchecked. Here, an error is considered as the unchecked exception. According to Oracle, there are three types of exceptions:

1. Checked Exception
2. Unchecked Exception
3. Error

Difference between Checked and Unchecked Exceptions

1) Checked Exception

The classes which directly inherit Throwable class except RuntimeException and Error are known as checked exceptions e.g. IOException, SQLException etc. Checked exceptions are checked at compile-time.

2) Unchecked Exception

The classes which inherit RuntimeException are known as unchecked exceptions e.g. ArithmeticException, NullPointerException, ArrayIndexOutOfBoundsException etc. Unchecked exceptions are not checked at compile-time, but they are checked at runtime.

3) Error

Error is irrecoverable e.g. OutOfMemoryError, VirtualMachineError, AssertionError etc.

Java Exception Keywords

There are 5 keywords which are used in handling exceptions in Java.

Keyword	Description
try	The "try" keyword is used to specify a block where we should place exception code. The try block must be followed by either catch or finally. It means, we can't use try block alone.
catch	The "catch" block is used to handle the exception. It must be preceded by try block which means we can't use catch block alone. It can be followed by finally block later.
finally	The "finally" block is used to execute the important code of the program. It is executed whether an exception is handled or not.
throw	The "throw" keyword is used to throw an exception.
throws	The "throws" keyword is used to declare exceptions. It doesn't throw an exception. It specifies that there may occur an exception in the method. It is always used with method signature.

Common Scenarios of Java Exceptions

There are given some scenarios where unchecked exceptions may occur. They are as follows:

1) A scenario where ArithmeticException occurs

If we divide any number by zero, there occurs an ArithmeticException.







int a=50/0;//ArithmeticException  2) A scenario where NullPointerException occurs




If we have a null value in any variable, performing any operation on the variable throws a NullPointerException.







String s=null;
System.out.println(s.length());//NullPointerException




3) A scenario where NumberFormatException occurs

The wrong formatting of any value may occur NumberFormatException. Suppose I have a string variable that has characters, converting this variable into digit will occur NumberFormatException.







String s="abc";
int i=Integer.parseInt(s);//NumberFormatException




4) A scenario where ArrayIndexOutOfBoundsException occurs

If you are inserting any value in the wrong index, it would result in ArrayIndexOutOfBoundsException as shown below:







int a[]=new int[5];
a[10]=50; //ArrayIndexOutOfBoundsException

Java Exceptions Index

1. Java Try-Catch Block
2. Java Multiple Catch Block
3. Java Nested Try
4. Java Finally Block
5. Java Throw Keyword
6. Java Exception Propagation
7. Java Throws Keyword
8. Java Throw vs Throws
9. Java Final vs Finally vs Finalize
10. Java Exception Handling with Method Overriding
11. Java Custom Exceptions

Java I/O Tutorial

Java I/O (Input and Output) is used to process the input and produce the output.

Java uses the concept of a stream to make I/O operation fast. The java.io package contains all the classes required for input and output operations.

We can perform file handling in Java by Java I/O API.

Stream

A stream is a sequence of data. In Java, a stream is composed of bytes. It's called a stream because it is like a stream of water that continues to flow.

In Java, 3 streams are created for us automatically. All these streams are attached with the console.

1) System.out: standard output stream

2) System.in: standard input stream

3) System.err: standard error stream

OutputStream
Java application uses an output stream to write data to a destination; it may be a file, an array, peripheral device or socket.

InputStream

Java application uses an input stream to read data from a source; it may be a file, an array, peripheral device or socket.

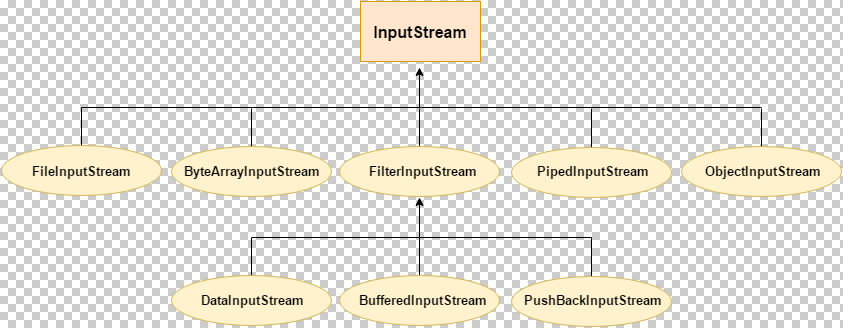

InputStream Hierarchy

OutputStream Hierarchy
